Best Axial fan motors Ac spare parts dealer in Dubai, UAE

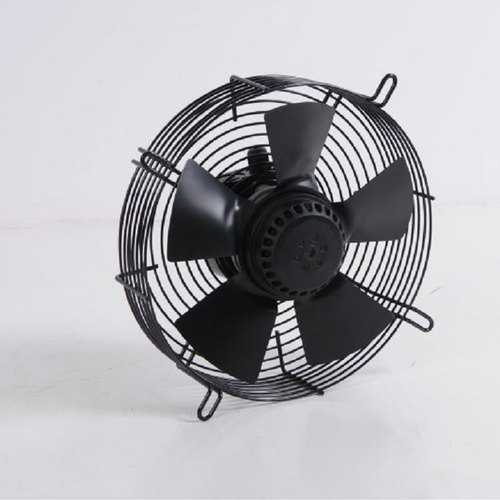

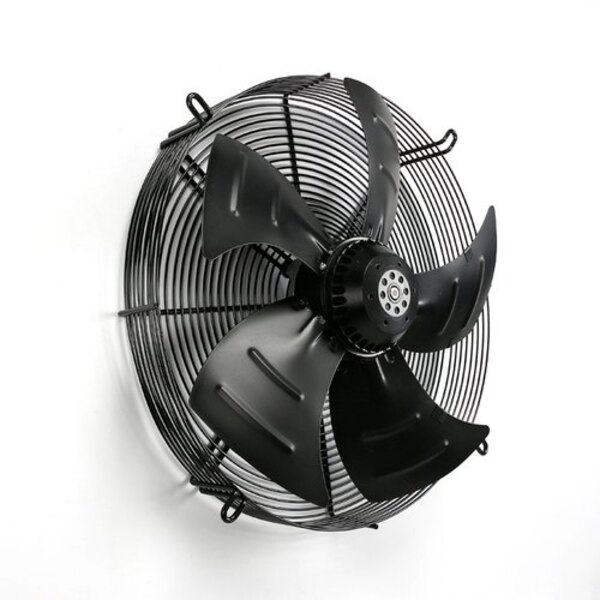

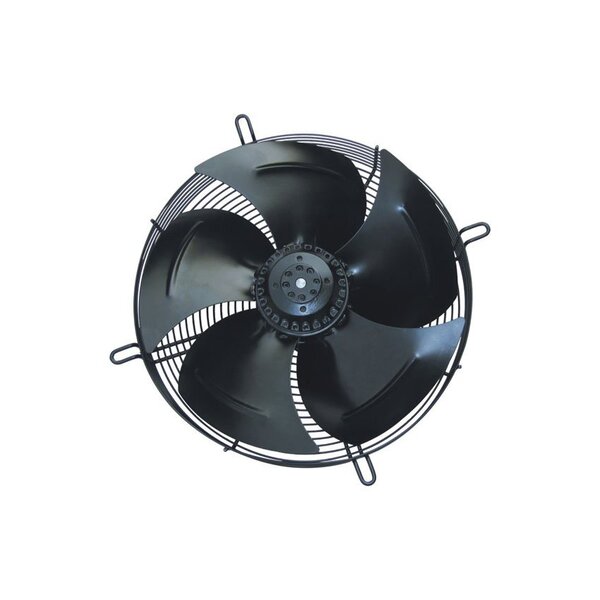

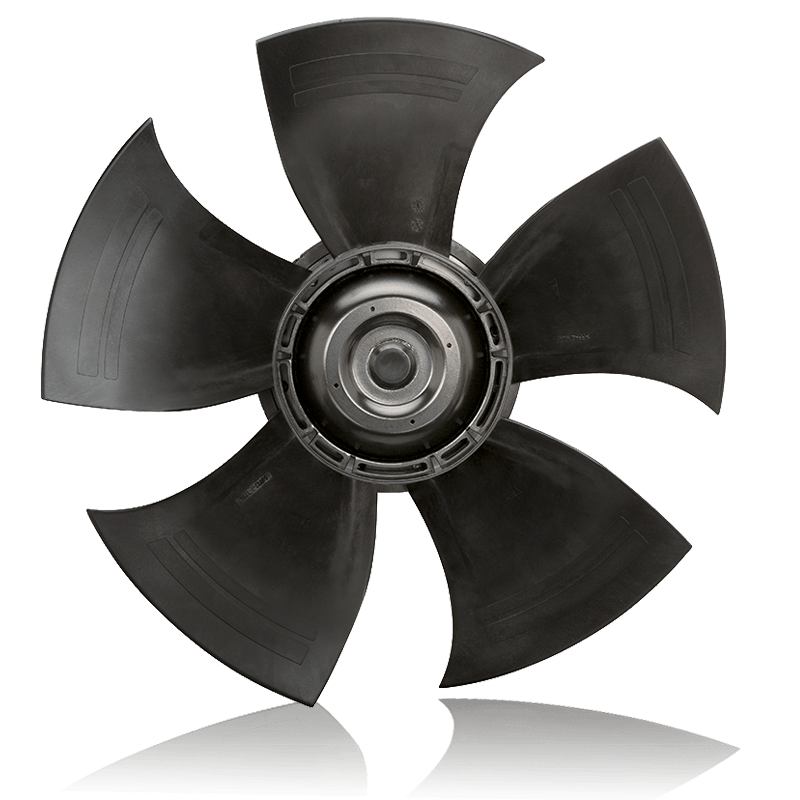

Axial fan motors ac is a type of electric motors that are designed to provide air flow in a specific direction. It is used in many purposes such as cooling, ventilation, or heating. The motor has a rotating shaft that has an axial fan on the end of it. We, Prime Quality Ac Spare Parts dealers are highly qualified and experienced professionals who provide the best services to their customers.
We are the top Axial Fan Motors Ac Spare Parts dealers in Dubai, UAE. We have a wide range of these parts that you can buy at affordable rates conveniently. Contact us for any queries or visits if you want to know more about our products.
PRODUCT SPECIFICATION:
| Model | Size in inch | Poles | Phase | Voltage (VAC) | Current
(A) |
Power (W) | Speed (RPM) | Airflow (M³/hr) | Airflow (CFM) | Noise dBA | Capacitor uf | wt Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4E-200 | 8 | 4 | Single | 230 | 0.21 | 40 | 1400 | 480 | 283 | 45 | 1.5 | 3.0 |
| 4E-250 | 10 | 4 | Single | 230 | 0.23 | 50 | 1380 | 1000 | 647 | 55 | 2 | 3.0 |
| 4E-300 | 12 | 4 | Single | 230 | 0.42 | 85 | 1350 | 1820 | 1071 | 58 | 3 | 3.3 |
| 4E-350 | 14 | 4 | Single | 230 | 0.65 | 140 | 1380 | 3100 | 1825 | 62 | 4 | 4.9 |
| 4E-400 | 16 | 4 | Single | 230 | 0.82 | 180 | 1380 | 4000 | 2354 | 68 | 6 | 5.6 |
| 4E-450 | 18 | 4 | Single | 230 | 1.20 | 250 | 1350 | 5100 | 3002 | 68 | 8 | 7.2 |
| 4E-500 | 20 | 4 | Single | 230 | 1.85 | 420 | 1300 | 7700 | 4532 | 72 | 10 | 9.5 |
| 4E-550 | 22 | 4 | Single | 230 | 2.55 | 550 | 1300 | 9200 | 5415 | 75 | 12 | 10.5 |
| 4E-600 | 24 | 4 | Single | 230 | 300 | 700 | 1360 | 11000 | 6474 | 78 | 16 | 14.0 |
