Best Axial Fan Motors Three Phase Ac spare parts in Dubai, UAE

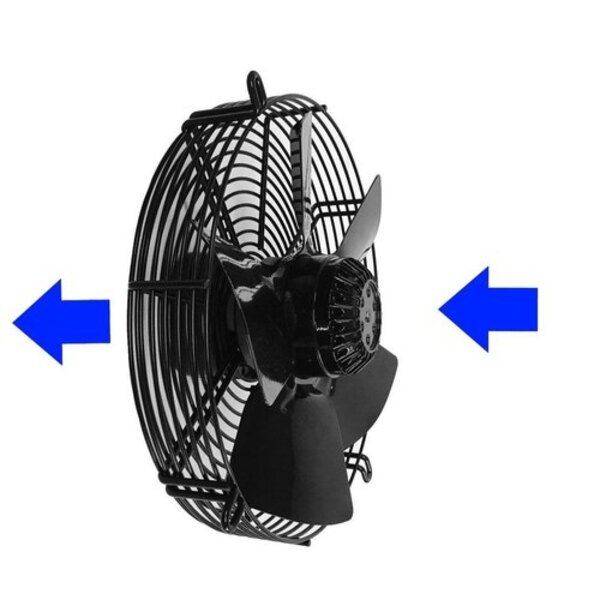

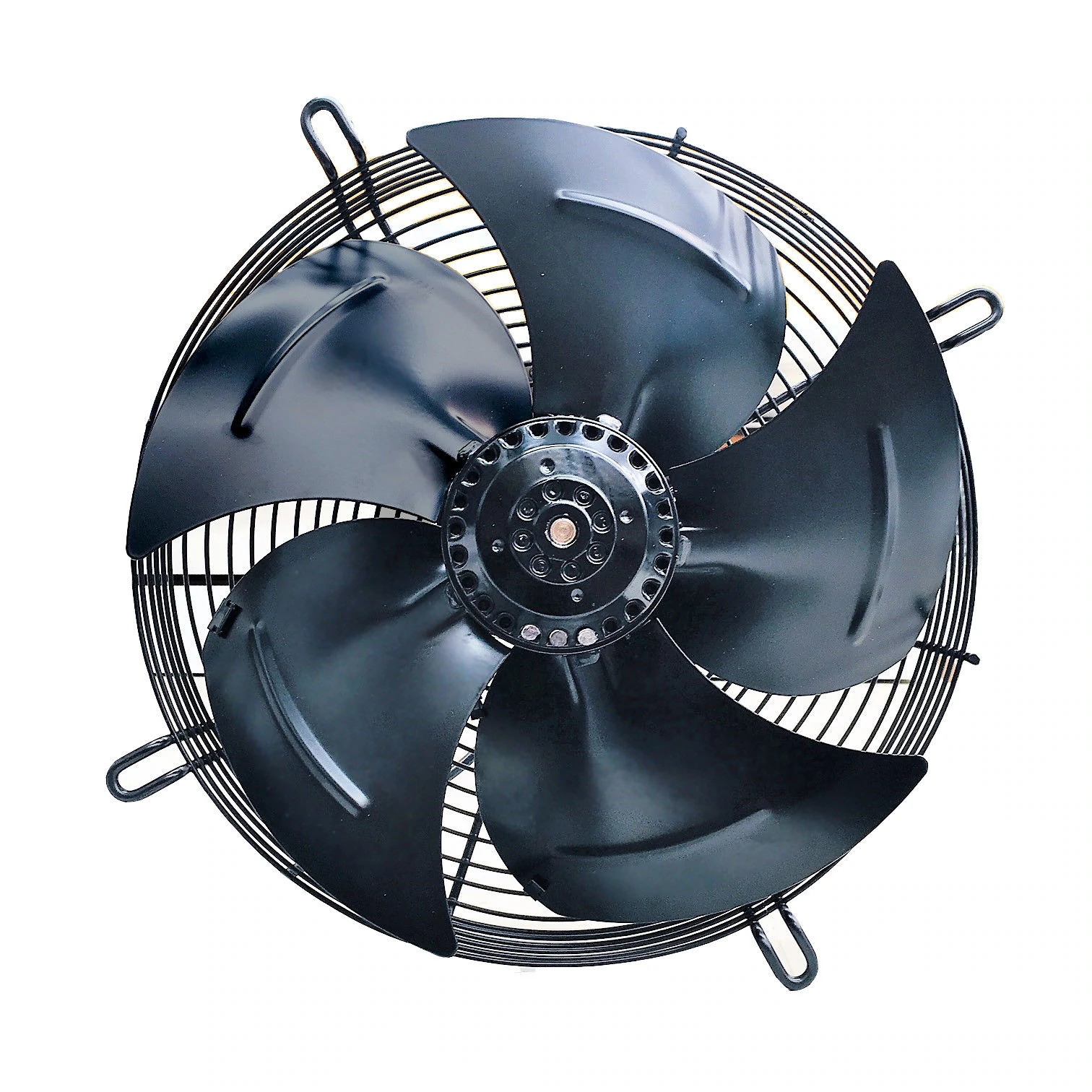

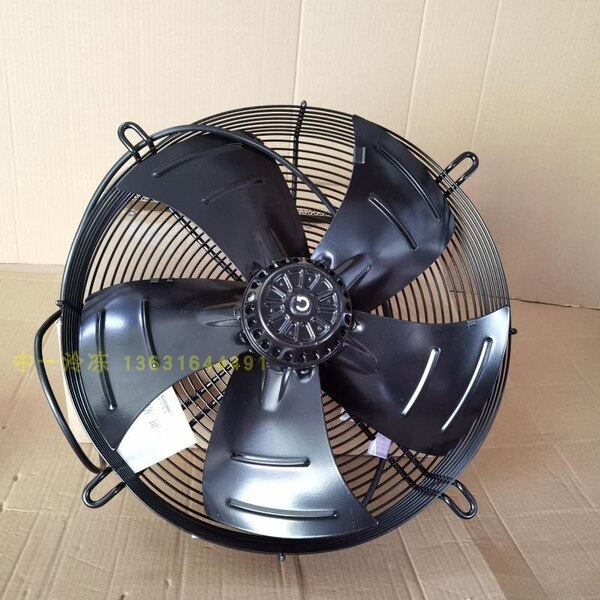

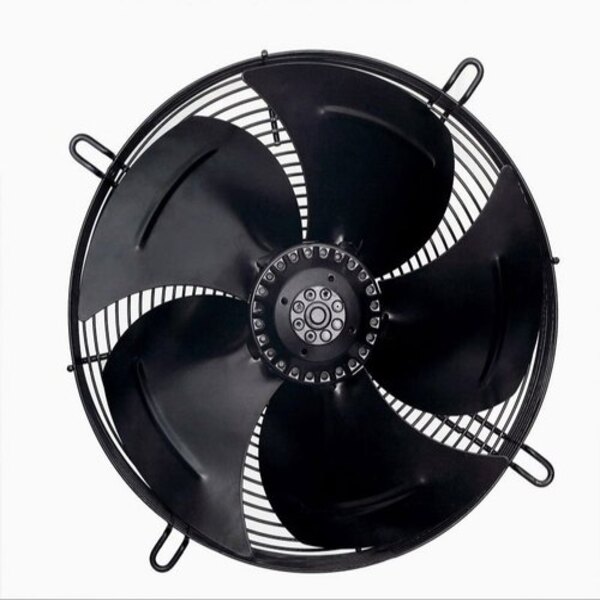

Axial fan motors are a modern application of power and efficiency. The axial spinning of the motor’s rotor blades provides a large airflow over a wide angle, which allows axial fans to be used for all kinds of ventilation and cooling applications. It is typically constructed from steel, aluminum, and plastic which results in a robust construction with low weight. They can also be cooled by air or water depending on the application.
Our products have been examined by some experienced professionals who know all the required knowledge regarding how the business operates. Due to this, we can offer you some top-quality products. We offer our customers high-quality Axial Fan Motors Ac Spare Parts at affordable prices. We aim to provide superior and efficient customer service while also providing timely deliveries.
PRODUCT SPECIFICATION:
| Model | Size in inch | Poles | Phase | Voltage (VAC) | Current
(A) |
Power (W) | Speed (RPM) | Airflow (M³/hr) | Airflow (CFM) | Noise dBA | wt Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4D-200 | 8 | 4 | Three | 415 | 0.10 | 30 | 1450 | 550 | 324 | 45 | 3.0 |
| 4D-250 | 10 | 4 | Three | 415 | 0.17 | 60 | 1400 | 1025 | 603 | 55 | 3.0 |
| 4D-300 | 12 | 4 | Three | 415 | 0.22 | 75 | 1380 | 1850 | 1089 | 58 | 3.3 |
| 4D-350 | 14 | 4 | Three | 415 | 0.38 | 140 | 1380 | 3125 | 1839 | 62 | 4.9 |
| 4D-400 | 16 | 4 | Three | 415 | 0.47 | 180 | 1380 | 4080 | 2401 | 68 | 5.6 |
| 4D-450 | 18 | 4 | Three | 415 | 0.60 | 250 | 1360 | 5200 | 3061 | 68 | 7.2 |
| 4D-500 | 20 | 4 | Three | 415 | 0.90 | 450 | 1300 | 7800 | 4591 | 72 | 9.5 |
| 4D-550 | 22 | 4 | Three | 415 | 1.20 | 600 | 1300 | 9300 | 5474 | 75 | 10.5 |
| 4D-600 | 24 | 4 | Three | 415 | 1.60 | 780 | 1350 | 12000 | 7063 | 78 | 14.0 |
| 4D-630 | 25 | 6 | Three | 415 | 1.60 | 800 | 1320 | 14000 | 8240 | 78 | 15.0 |
